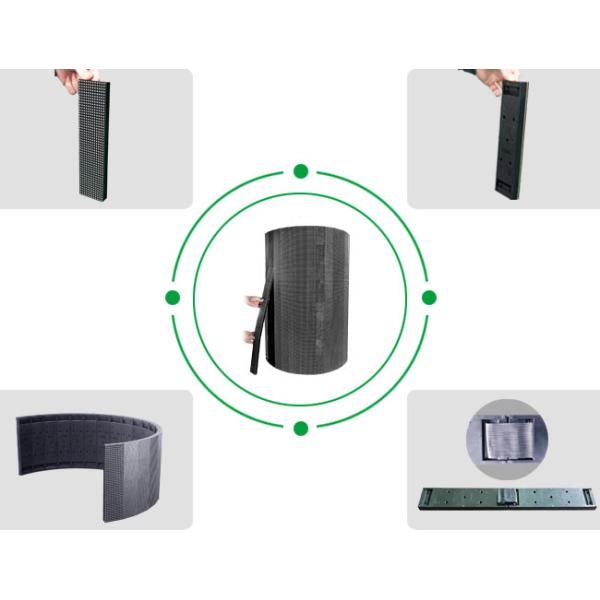

Black Curved LED Screen Outdoor Advertising Digital Display 3000Cd / M² 62.5x250 MM
Product Features
l Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high
brightness
l More than 120 degree in horizontal and vertical to ensure you attract more audience to get short ROI of
your LED display screen's investment
l With ultra high refresh rate, to ensure clear picture
l Fast and convenient assembly and dismount system
l Using high quality led chip and lamp to ensure led display can last 8 years with low Lumens
depreciation.
Technical Specification
| Model No. | Curve 3.9 |
| Pixel Pitch | 3.9mm |
| Module Size | 62.50*250mm |
| Module Resolution(pixels) | 16*64 |
| Panel Size | 62.50mm×250mm |
| Panel Resolution(pixels) | 128*256 |
| Pixel Configuration(RGB) | 1R1G1B |
| Pixel Density(pixels/m2) | 16384 |
| Brightness(cd/m2) | 1000 / 6000 |
| Best Viewing Distance(m) | >4m |
| Max.Power Consumption(W/m2) | 410/ 820 |
| Waterproof Level | Indoor IP43/Indoor IP54 / outdoor IP65 |
| Wavelength | R 625±5nm, G 525±5nm B 470±5nm |
| LED SPEC | SMD3528 /SMD3535 |
| Viewing Angle | 110°(H)/110°(V) |
| Operating Temperature | –20~50°C |
| Video Frame Rate(Hz) | 30-120HZ |
| Display Refresh Rate(Hz) | ≥4000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50000 hours |
| Lifespan | ≥100000Hours |
| Working Voltage | DC24V |
| Drive Mode | Scan 1/16 or Scan 1/8 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | Dbstar |
| Software | Xmplayer 3.1 |
| Installation | Wall mount, hung |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s IIS standard.
2. All brand-new Panels’ electronic functions are guarranteed during warranty period of 1 year beginning
with the invoice date.
3. During the warranty, if panels’ electronic functions problems occur, customers provide the photos to
illustrate the panel’s problem. Once our engineering department has confirmed it is the original factory’s
electronic problem, we will take back the panels with problem and replace it with new panels. All freight will
be taken by us.
4. If it is beyond the warranty period and customer needs to repair the panels, we can repair them and
customers will take the cost of the repairing and freight.
5. All confirmation will be given to customers in 24hours.
Product Tags:
|
|
Black Curved LED Screen Outdoor Advertising Digital Display 3000Cd / M² 62.5x250 MM Images
|
